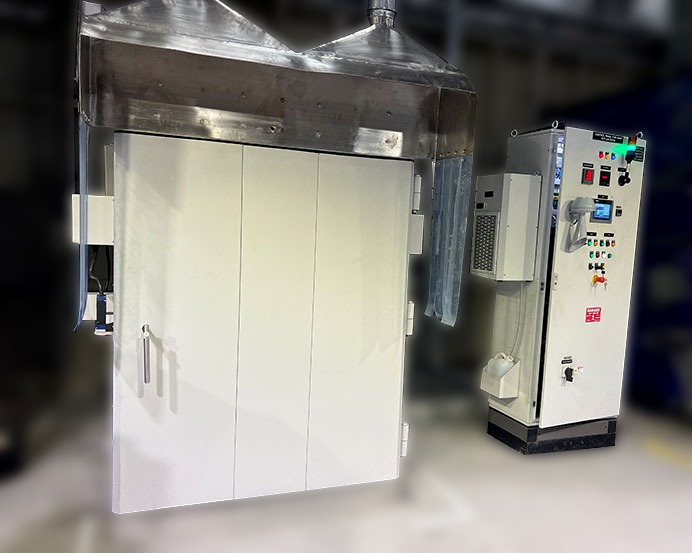

A Batch Oven is one of the most common machines in factories where materials need to be heated for a set amount of time. It works differently than a conveyor belt system because you load a group of items inside, close the door, and let them heat up all at once. This makes it a great choice for jobs like drying out wet parts, curing paint, or warming up metal before you work on it. Since it is a closed box, it is much easier to keep the temperature steady. This means your results stay consistent, and every part comes out looking the same.
Technical Specifications
Single or double doors
Stainless steel
15°C (27°F) above ambient to 316°C (600°F)
This can be customized as per customer needs.
Electric, gas-fired, or a combination of both
Over-temperature controls, door safety interlocks, and emergency shut-off switches
Common insulation materials include mineral wool
Heavy-Duty Construction for Reliable Daily Use
We are well-known Batch Oven manufacturers in India, and we focus on making equipment that can handle the rough environment of a busy workshop. We use thick steel and heavy-duty parts so the oven doesn't break down when you have a lot of work to finish. We also keep the design very simple. If you need a reliable way to heat your products day after day, our ovens are a smart, long-lasting choice for your business. The main reason people use a Batch Oven is the level of control it gives you. You can set the exact temperature you need for a specific job, which is very helpful if you do different types of work throughout the week.
Find Out Features of Batch Oven
Salient Features
- Simple digital screens to set the temperature
- Thick insulation to keep the heat inside and save power
- Fans that move the air evenly to every corner
- Strong metal body that can handle heavy daily use
- Safety switches that turn the machine off if needed
- Very low maintenance
- Compact design so it doesn't take up too much floor space
- Easy to load and unload with wide doors
Applications of Batch Oven
Batch Oven for Easy Operation and Consistent Results
These ovens are a must-have for manufacturing units where getting the heat right is the most important part of the process. We’ve made sure the air moves around properly inside the chamber. This prevents cold spots and distributes heat evenly, so the items at the back of the oven get just as much heat as the ones at the front.
As one of the trusted Batch Oven suppliers in India, we build our machines to be easy to maintain. These ovens are great for both small shops and larger production lines. The controls are very basic, so any operator can manage the heat without making mistakes. Choosing our batch oven helps you get your work done faster while making sure your quality stays high every single time.
Frequently Asked Questions (FAQs)
What is the maximum temperature a batch oven can reach and is that enough for powder coating cure?
The maximum operating temperature of a batch oven depends on its design and application. Industrial batch ovens are commonly available with temperature ranges from 100°C to 500°C, while special-purpose ovens can be designed for higher temperatures.
For powder coating, the typical curing temperature is 160°C to 220°C, depending on the powder type and the coating manufacturer’s recommendations. Therefore, a standard industrial batch oven designed for temperatures up to 250°C or 300°C is generally more than sufficient for powder coating applications.
To achieve consistent curing quality, the oven should provide:
- Excellent temperature uniformity throughout the working chamber.
- Accurate temperature control and monitoring.
- Efficient hot air circulation for uniform heat distribution.
- Programmable curing cycles for different coating specifications.
- Energy-efficient insulation to minimize heat loss.
At Maharith Thermal Pvt. Ltd., we manufacture custom batch ovens for powder coating and other industrial heating applications, offering precise temperature control, excellent temperature uniformity, and energy-efficient operation to ensure consistent curing and high-quality finishes.
How much does it cost to run a batch oven per shift and what affects running cost?
The operating cost of a batch oven per shift depends on several factors, including the oven size, heating capacity, operating temperature, production cycle, utility rates, and overall process efficiency. As a result, the running cost varies from one application to another.
The primary factors affecting operating cost include:
- Installed heating power (kW).
- Operating temperature and heating cycle duration.
- Number of batches processed per shift.
- Product load and thermal mass.
- Insulation quality and heat losses.
- Air circulation efficiency.
- Ambient working conditions.
- Electricity or fuel cost at the installation site.
- Operator practices and production scheduling.
A properly designed, energy-efficient batch oven can significantly reduce operating costs by minimizing heat loss, optimizing air circulation, and maintaining accurate temperature control.
At Maharith Thermal Pvt. Ltd., our batch ovens are engineered with high-performance insulation, optimized airflow, and advanced control systems to maximize energy efficiency, reduce operating costs, and deliver consistent process performance. We can also estimate the expected power consumption and operating cost based on your specific application and production requirements
How does a batch oven differ from a batch type furnace?
A batch oven and a batch type furnace are designed for different temperature ranges and industrial applications.
A batch oven is primarily used for low- to medium-temperature heating processes, typically up to 300°C–500°C, depending on the application. It is commonly used for drying, curing, baking, preheating, ageing, moisture removal, and powder coating.
A batch type furnace is designed for high-temperature heat treatment processes, typically operating from 650°C up to 1,200°C or higher. It is used for applications such as annealing, normalizing, hardening, tempering, stress relieving, solution treatment, and other metallurgical heat treatment processes.
Batch Oven | Batch Type Furnace |
Low to medium temperature applications | High-temperature heat treatment applications |
Typical operating range: up to 300°C–500°C | Typical operating range: 650°C–1,200°C or higher |
Used for drying, curing, baking, ageing, and preheating | Used for annealing, hardening, tempering, normalizing, and stress relieving |
Focuses on process heating and moisture removal | Focuses on altering the metallurgical properties of metals |
Generally does not require heat treatment process control | Requires precise heat treatment cycles and temperature control |
At Maharith Thermal Pvt. Ltd., we manufacture both industrial batch ovens and batch type furnaces, each custom-designed to meet the specific temperature, process, and production requirements of our customers.
Why is my batch oven heating unevenly across the racks?
Uneven heating across the racks is usually caused by poor air circulation, improper loading, or issues with the oven’s heating or control system. Non-uniform temperature distribution can result in inconsistent drying, curing, baking, or heating of the product.
Common causes include:
- Improper loading or overloading that restricts airflow.
- Blocked air ducts or circulation passages.
- Worn or malfunctioning air circulation fans.
- Uneven distribution of the workload within the oven.
- Faulty or damaged heating elements.
- Incorrectly calibrated temperature sensors or controllers.
- Damaged door seals causing heat loss and air leakage.
- Insufficient preventive maintenance.
To achieve uniform heating, products should be loaded with adequate spacing to allow free air circulation, and the oven should be regularly inspected and maintained. Periodic calibration of temperature sensors and verification of temperature uniformity also help ensure consistent process performance.
At Maharith Thermal Pvt. Ltd., our batch ovens are designed with optimized airflow, high-efficiency circulation fans, precise temperature control, and excellent temperature uniformity to deliver consistent heating across all rack levels and ensure reliable product quality
What is the typical operational lifespan of a batch oven?
The typical operational lifespan of an industrial batch oven is 10 to 15 years or more, depending on its design, operating conditions, maintenance practices, and production environment.
The service life of a batch oven is influenced by several factors, including:
- Quality of construction and insulation materials.
- Operating temperature and production cycles.
- Frequency of use and product loading.
- Regular preventive maintenance and servicing.
- Timely replacement of wear components such as heating elements, circulation fans, thermocouples, door seals, and electrical components.
- Proper operating practices and adherence to the recommended loading capacity.
With routine maintenance and periodic replacement of consumable components, a well-designed batch oven can provide reliable, energy-efficient operation for many years.
At Maharith Thermal Pvt. Ltd., our batch ovens are manufactured using high-quality materials, energy-efficient insulation, and advanced control systems to ensure long service life, consistent performance, and low maintenance requirements across a wide range of industrial heating applications
